Electric Tricycle Battery

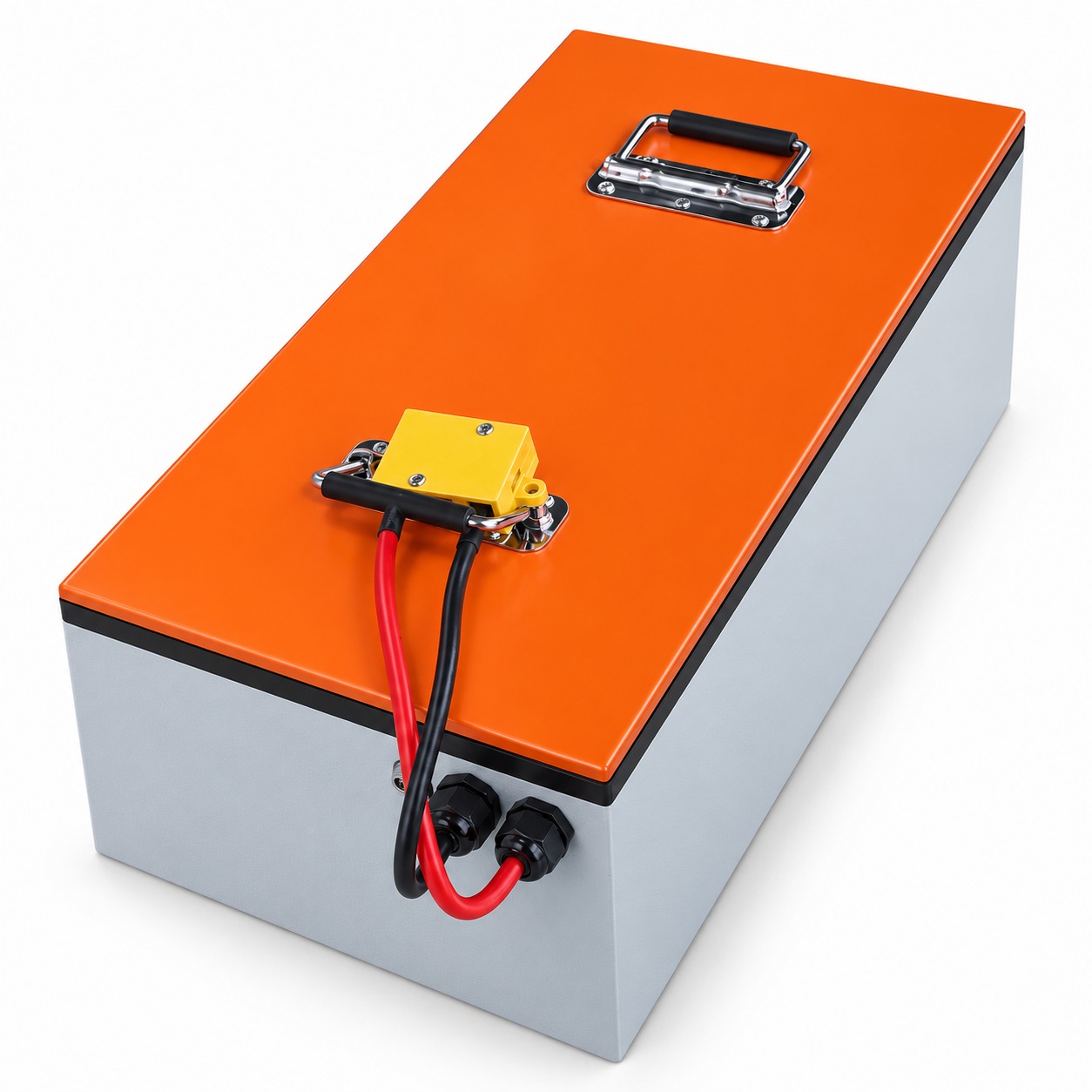

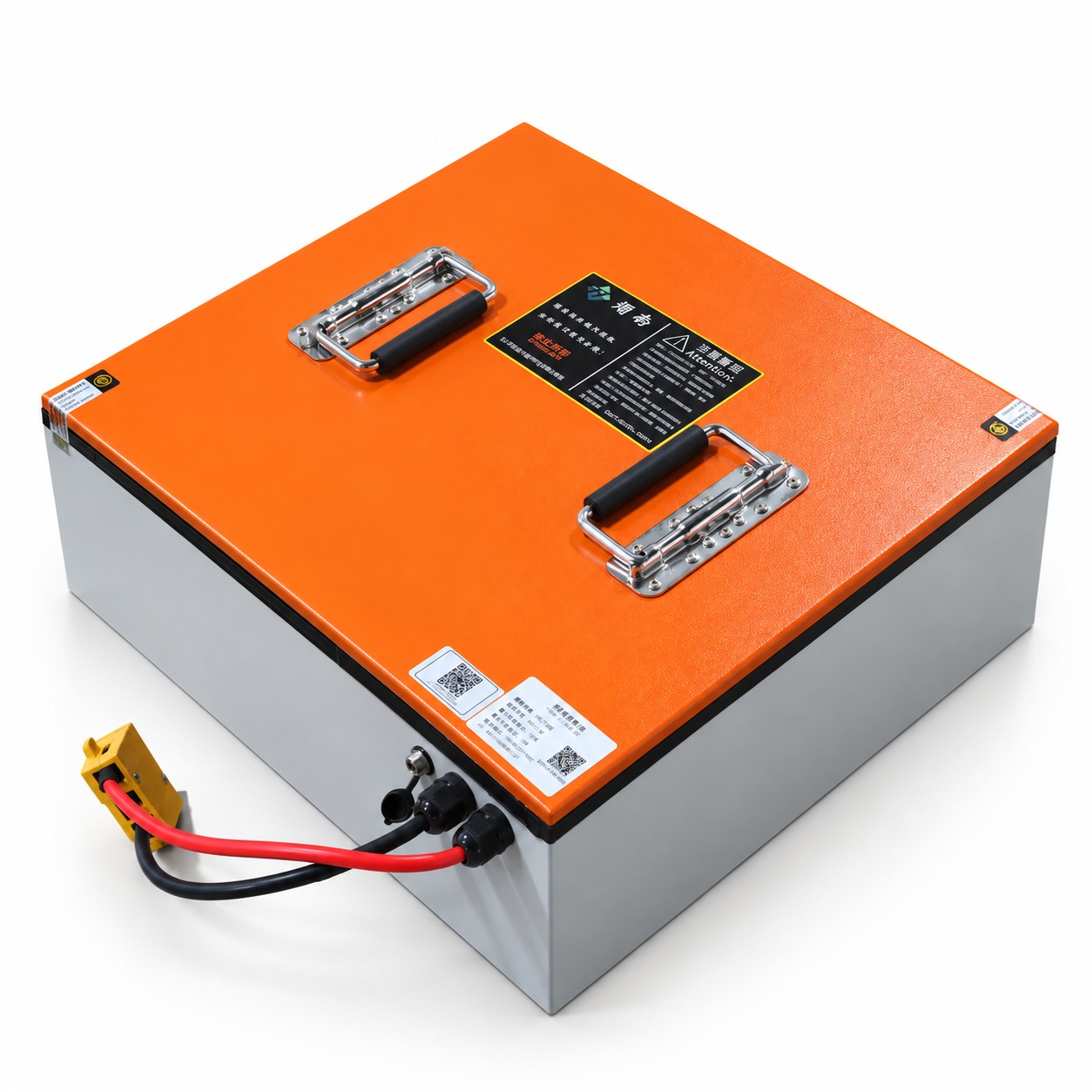

Product photography shows the enclosure style. Final dimensions, connectors and configuration follow the approved specification.
LEV-3W SERIES
Product Overview
LiFePO4 battery PACK solutions for passenger and cargo electric tricycles. Yinan configures the pack around the vehicle envelope, controller demand and daily duty cycle, with 64V and 76.8V series documented in our catalog.
Choose your configuration
Nominal voltage
Capacity
Model
LEV-3W-64V-39Ah
Nominal voltage
64V
Nominal capacity
39Ah
Nominal energy
2.496 kWh
Battery chemistry
LiFePO4
Voltage range
50–73V
Standard charge current
11.7A
BMS rated current
60A
Communication
CAN or RS485; UART display standard
Heating function
Optional
Key Features
Application-led design
Battery configuration matched to your operating conditions and installation space.
Intelligent BMS
Monitoring and protection settings selected for the approved battery configuration.
Flexible integration
Discuss dimensions, connectors, communication and charging requirements with our team.
Applications
Passenger electric tricycles • Cargo electric tricycles • Low-speed delivery vehicles
Before You Order
Share payload, route distance, hill-climbing needs, available installation space and charger information. These inputs help define capacity, current limits and mounting requirements.
Specifications refer to the Yinan product catalog V-2026.09 unless a product nameplate is stated. Energy is calculated from nominal voltage × capacity. Confirm the final datasheet, operating limits and system compatibility before ordering.
